Chapter 10: Rasterization with WebGL
Learning ObjectivesBy the end of this lecture, you will be able to:
|
 |
Our main goal for today is to be able to run the entire pipeline below from start to finish using WebGL. The notes here mostly serve as a reference for building complete WebGL programs. In class, we'll build our own application to render a cube with our cut-and-paste texturing technique.
In last week's lab, we focused on implementing a fragment shader. Today, we'll also build a vertex shader which takes in certain inputs that we'll need to store in the GPU's memory. We'll also talk about how we pass data from the vertex shader to the fragment shader and control global variables that are common to our shader programs.
WebGL is a state machine: manage the state using the "context".
WebGL is a state machine in the sense that it is a large collection of variables that define how it should operate. The state is managed by the context we introduced in the last lecture. Recall that we can retrieve a context from the canvas like this:
let gl = canvas.getContext("webgl"); // retrieves a WebGL contextThis context has a collection of functions and constants that we can use and/or modify to change the behavior of the rendering pipeline.
Recall that in Lab 8, we had to enable depth testing (gl.enable(gl.DEPTH_TEST)). This changed the state so that whenever we ran the rendering pipeline, WebGL would use depth testing and draw stuff in the correct order. In this example, gl.enable was the function that allowed us to change the state.
In addition to global variables, we can also manage the state used to describe how data flows through the rendering pipeline using buffers and attributes. We can also manage which shader program is currently active in the rendering pipeline.
State diagrams: a way to visualize the current state.
To better understand this concept of state, please open the following link. In the dropdown at the top-right, click on the "Rainbow Triangle" example.
https://webglfundamentals.org/webgl/lessons/resources/webgl-state-diagram.html
If you click the two rightwards-pointing arrows at the top right, you should see something like this. Please take a moment to investigate all the different boxes - we'll talk about the details of how this relates to the code we write in the next sections.
Shader Programs: injecting code into the rendering pipeline by attaching shaders and compiling.
Usually, the first thing you'll do is create a program that represents how vertices and fragments are processed. Each shader (vertex, fragment) will be compiled individually and then attached to this shader program. To compile a shader:
const compileShader = (gl, shaderSource, type) => {
let shader = gl.createShader(type);
gl.shaderSource(shader, shaderSource);
gl.compileShader(shader);
if (!gl.getShaderParameter(shader, gl.COMPILE_STATUS)) {
let error = gl.getShaderInfoLog(shader);
gl.deleteShader(shader);
throw ("Unable to compile " + (type === gl.VERTEX_SHADER ? "vertex" : "fragment") + " shader: " + error);
}
return shader;
};This returns WebGLShader object that can be attached to a program (a WebGLProgram object):
const compileProgram = (gl, vertexShaderSource, fragmentShaderSource) => {
let vertexShader = compileShader(gl, vertexShaderSource, gl.VERTEX_SHADER);
let fragmentShader = compileShader(gl, fragmentShaderSource, gl.FRAGMENT_SHADER);
let program = gl.createProgram();
gl.attachShader(program, vertexShader);
gl.attachShader(program, fragmentShader);
gl.linkProgram(program);
if (!gl.getProgramParameter(program, gl.LINK_STATUS))
throw ("Unable to compile the shader program: " + gl.getProgramInfoLog(program));
gl.useProgram(program);
return program;
};At the end of the compileProgram function, note that gl.useProgram(program) will change the state of WebGL so that any rendering calls use this program. We will usually have a single program in our course, but it's possible to have multiple programs to create different effects for different objects in your scene.
Varyings: passing data from the vertex shader to the fragment shader.
Here is an example of a vertex shader and fragment shader. Don't worry about the attribute stuff for now, we'll talk about that soon. Right now, I just want to highlight the idea of a varying. This is a way to specify that we want to pass a variable called v_Color from the vertex shader to the fragment shader. Wait a second. If the vertex shader operates on every vertex and the fragment shader operates on every fragment, how can be get a value for v_Color at a fragment (which is some portion of a triangle that overlaps a particular pixel)? Interpolation! Using barycentric coordinates (again), the values for the three varyings at the three vertices of a triangle will be interpolated to create a value at the fragment. Again, WebGL does the interpolation for us - we just need to specify that a variable will be passed from the vertex shader to the fragment shader using the varying declaration.
Vertex Shader:
attribute vec3 a_Position;
attribute vec3 a_Color;
varying vec3 v_Color; // declare varyings before main()
void main() {
gl_Position = vec4(a_Position, 1.0);
v_Color = a_Color; // we need to assign this as an output of the vertex shader
}Fragment Shader:
varying vec3 v_Color; // declare incoming interpolated varying
void main() {
gl_FragColor = vec4(v_Color, 1); // use the varying
}We can also specify qualifiers to tell WebGL how to do the interpolation. In the example above, we will use the default perspective-correct interpolation.
Buffers: Writing data to the GPU.
We need to tell WebGL where to look for our scene data. This means we need to upload the meshes in our scenes to the GPU. We do this with buffers. Think of a buffer as a chunk of memory where we will put our mesh data. Sometimes we need to upload floating-point data (for vertices), and sometimes it will be integer data (for triangle and/or edge indices).
Create buffers for point coordiantes and triangle indices (gl.createBuffer):
let pointBuffer = gl.createBuffer();
let triangleBuffer = gl.createbuffer();Bind the buffer (gl.bindBuffer):
Binding a buffer refers to the idea of setting the state of which buffer WebGL considers "active". We will use gl.ARRAY_BUFFER for floating-point data (vertices) and gl.ELEMENT_ARRAY_BUFFER for integer data (triangle/edge indices).
gl.bindBuffer(gl.ARRAY_BUFFER, pointBuffer);
// OR (if doing an operation with triangle indices)
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, triangleBuffer);A very important (and bug-prone) aspect of buffers is that every operation on a buffer will work with the currently bound buffer. This relates to the concept of a state. WebGL can only hold one state at a time for the ARRAY_BUFFER, and one for the ELEMENT_ARRAY_BUFFER, so we need to remember which one was the last one we bound.

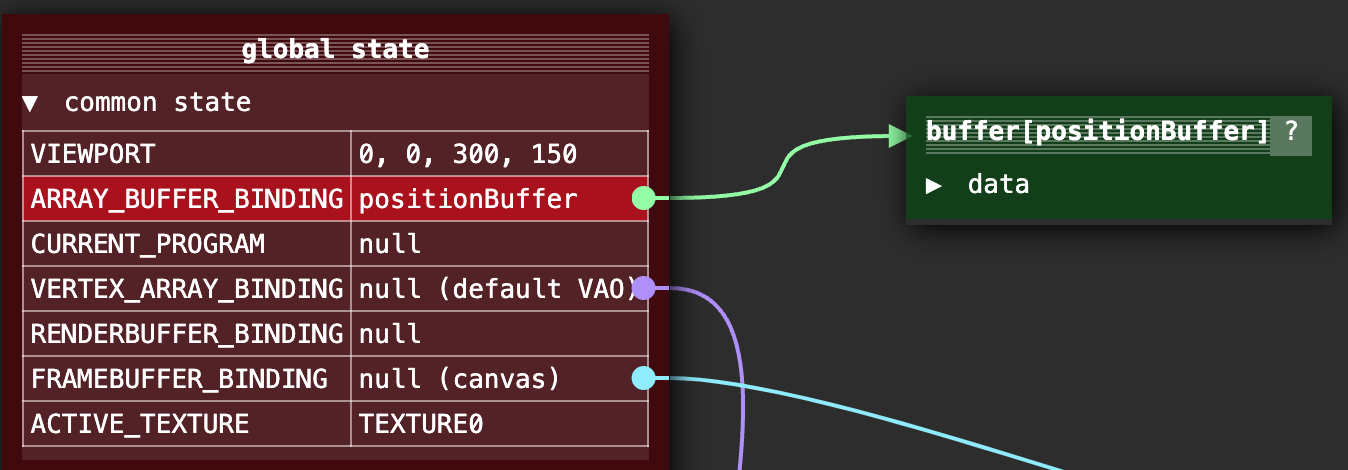

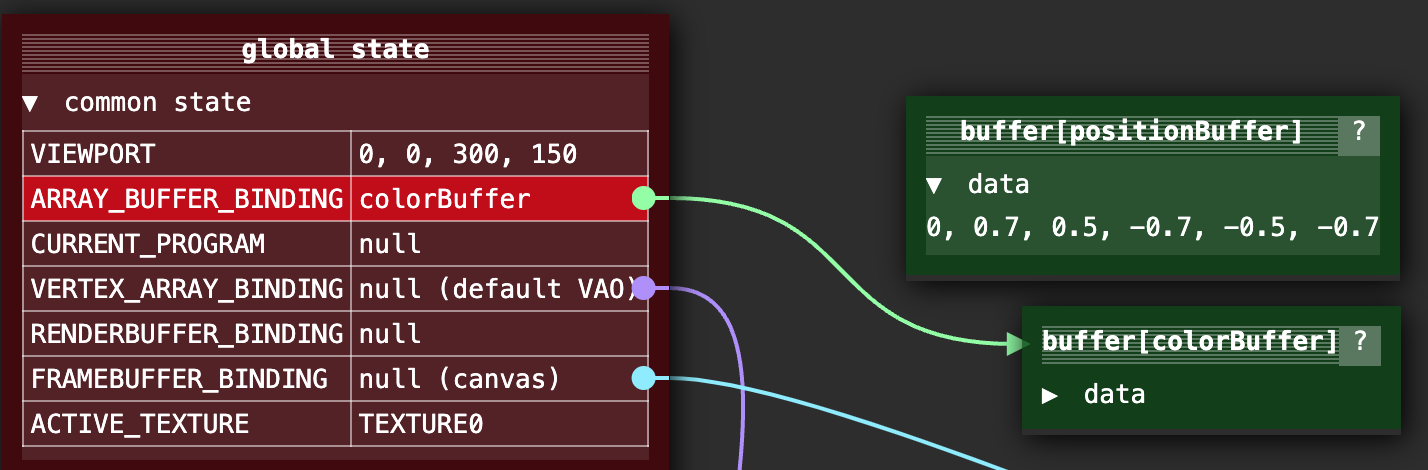

The picture below shows the difference between when a positionBuffer and colorBuffer are independently bound to the ARRAY_BUFFER.
Writing data to a buffer (gl.bufferData):
Say we have vertices stored in a 1d array called vertices and triangle indices stored in a 1d array called triangles. We want to upload both of these arrays to the GPU so WebGL can use them when running through the pipeline.
Unfortunately, raw JavaScript arrays (Array() or []) contain no information about the type of each element in the array. The GPU needs to know how much data we are uploading, so we need to convert these to typed arrays. We will use Float32Array for vertex coordinates and either Uint16Array or Uint32Array for integer data. These typed arrays can be constructed directly from the original arrays (e.g. vertices_f32 = new Float32Array(vertices)).
Now the data can be written to the GPU using the gl.bufferData function. You can always set the last argument to gl.STATIC_DRAW:
// write vertex coordinates to the GPU
gl.bindBuffer(gl.ARRAY_BUFFER, pointBuffer);
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(vertices), gl.STATIC_DRAW);
// write triangle indices to the GPU
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, triangleBuffer);
gl.bufferData(gl.ELEMENT_ARRAY_BUFFER, new Uint16Array(triangles), gl.STATIC_DRAW);Invoking the rendering pipeline (drawing the data you wrote to the GPU).
We're almost ready to draw. We first need to tell WebGL how the data we uploaded is associated with the buffers we created and wrote to. This is done using attributes. There are two steps we need to do here: (1) enable the attribute in the shader program, and (2) associate the attribute with a buffer. In order to enable the attribute, we need to know the "location" of the attribute in the program. Think of this as a pointer to the data. Here is a complete example that associates our pointBuffer with the a_Position attribute in the vertex shader. Assume the program is the same one we created earlier.
// assuming our vertex shader looks like this:
const vertexShaderSource = `
attribute vec3 a_Position; // declare the position attribute in the vertex shader (add "attribute" before declaring type and name of variable)
void main() {
gl_Position = vec4(a_Position, 1.0);
}`;
let a_Position = gl.getAttribLocation(program, "a_Position"); // the second argument (String) should match the name of the attribute in the vertex shader
gl.enableVertexAttribArray(a_Position); // enable the attribute
// now, associate the attribute with some buffer (here, we want to use the pointBuffer so we need to bind that one)
gl.bindBuffer(gl.ARRAY_BUFFER, pointBuffer);
gl.vertexAttribPointer(a_Position, 3, gl.FLOAT, false, 0, 0);
// ^ ^ ^The first three arguments (underlined with ^) are the most important. The last three can always be set to false, 0, 0 (in this class).
The first argument is the location of the attribute in the shader program. Next we have the stride of the data that is bound to the pointBuffer. This is 3 because there are three coordinates (x, y, z) for every vertex. The third argument is the type of the data (gl.FLOAT because we buffered a Float32Array for the vertices when we did the call to gl.bufferData).
If you want to attach data to vertices (and use it in the pipeline), you'll need to remember the stride of the data. For 3d vertex normals and 3d vertex coordinates, this will be 3. For 2d texture coordinates (next week), this will be 2. You can also attach colors to each vertex, in which case, the stride will also be 3 for the RGB components.
Finally drawing the data: gl.drawElements.
We're finally ready to invoke the rendering pipeline. We'll generally use gl.drawElements to draw our meshes. Again, before each call to gl.drawElements, we need to bind the buffer with the indices that will be used. For our triangleBuffer declared above, this will be:
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, triangleBuffer);
gl.drawElements(gl.TRIANGLES, triangles.length, gl.UNSIGNED_SHORT, 0);The first argument specifies that we are drawing triangles. If you want to draw edges, this should be gl.LINES. The next argument corresponds to how much data there is to draw. You would think that WebGL would remember this length since we wrote it earlier! But it doesn't. This sounds annoying but it's actually convenient because we may not always want to draw all the data. The last parameter is the offset in the indexed data, which gives control over where to start the drawing call. Again, this allows us to draw a subset of the triangles. In our course, we'll always draw everything, so you can set this to 0.
The second-to-last argument can be a source of bugs. It refers to the type of the data that we are drawing. In our case, we wrote a Uint16Array to represent our triangle indices as unsigned 16-bit integers. These are also called unsigned shorts, hence, the use of gl.UNSIGNED_SHORT. Note that this means the maximum number of vertices would be gl.UNSIGNED_INT (unsigned 32-bit integer) with triangle indices buffered as a Uint32Array.
Note there is another function called gl.drawArrays to invoke the rendering pipeline, but we won't really use it in our course.
Setting the global state.
Before drawing, we may also need to set some constants to control the global state. The most frequent ones we will use are gl.viewport, gl.enable and gl.polygonOffset and gl.clearColor.
Uniforms: for setting constants in your shader programs.
We may also want to calculate variables on the JavaScript side and pass them into our shaders. For example, if the view and or model matrices are modified when a user clicks and drags the mouse (we can apply a rotation to the model matrix), we need to transform points accordingly in the vertex shader. These variables can be passed into the pipeline as uniforms. We can pass int, float, vec3, vec4, mat3 and mat4. These uniforms can be used in either the vertex or fragment shader and need the uniform qualifier before declaring the type. For example:
uniform int u_shader; // as we saw in Lab 8
uniform float u_transparency; // in case you want to adjust the transparency value (4th component in gl_FragColor)
uniform vec3 u_km; // specify the material km on the JavaScript side
uniform mat4 u_ModelViewProjectionMatrix; // 4x4 matrix to transform points by the MVP matrix (in the vertex shader).I usually prefix uniforms with u_ to remember that they are uniforms. This helps when your shaders have a lot of variables. Similar to attributes, we need to retrieve the "location" of the uniform in the shader program, this time using gl.getUniformLocation. Here are some examples for float, vec3 and mat4. Let the vertex and fragment shaders be:
Vertex Shader:
attribute vec3 a_Position;
uniform mat4 u_ModelViewProjectionMatrix;
void main() {
gl_Position = u_ModelViewProjectionMatrix * vec4(a_Position, 1.0);
}Fragment Shader:
uniform float u_transparency;
uniform vec3 u_km;
void main() {
gl_FragColor = vec4(u_km, u_transparency);
}We can set these uniforms from the JavaScript side like this:
let u_transparency = gl.getUniformLocation(program, "u_transparency");
gl.uniform1f(u_transparency, 0.6); // use gl.uniform1i if the uniform is an integer
let u_km = gl.getUniformLocation(program, "u_km");
gl.uniform3f(u_km, 0.6, 0.4, 0.5);
// OR
gl.uniform3fv(u_km, vec3.fromValues(0.6, 0.4, 0.5)); // the "v" at the end of uniform3fv means it is a vector
// assuming you have computed the model-view-projection (MVP) matrix somewhere
let u_mvp = gl.getUniformLocation(program, "u_ModelViewProjectionMatrix");
gl.uniformMatrix4fv(u_mvp, false, mvp); // assuming "mvp" is a mat4Note the difference between writing scalars and vectors (uniform[1234][fi][v]) and how matrices are passed (uniformMatrix[234]fv). This is often a source of bugs (it's easy to forget the transpose option for matrices, which we have set to false in this example). For more information, please see the following documentation:
- uniform[1234][fi][v]: https://developer.mozilla.org/en-US/docs/Web/API/WebGLRenderingContext/uniform
- uniformMatrix[234][fi]vv: https://developer.mozilla.org/en-US/docs/Web/API/WebGLRenderingContext/uniformMatrix
After setting a uniform, we can use it in the shader program when the rendering pipeline runs.
